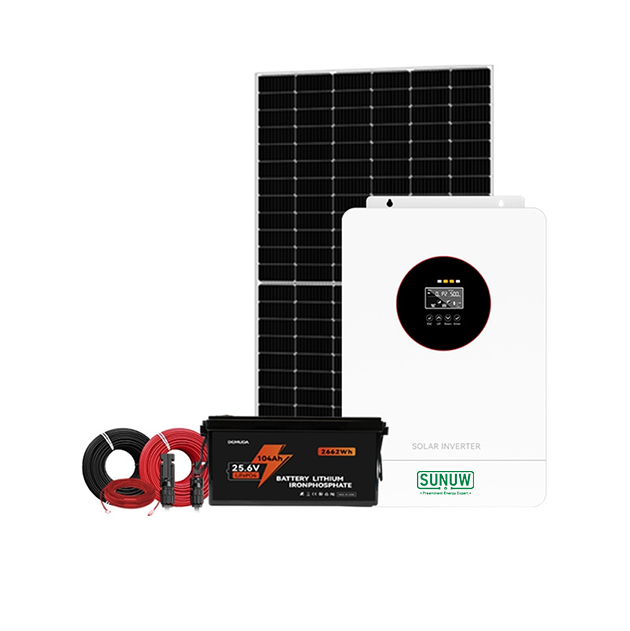

1500W For Tiny House Home Solar Kit

Product Model:

1.5KW Tiny House Kit

● Grade A+ solar cells with 22% cell efficiency
● More energy, even in partially shaded areas
● Vibration resistance for flexible mounting
● Easy connection for a quick set up
● 25-year performance warranty

SUNUW 550W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 550W	Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 49.82V	Optimum Operating Voltage (Vmp): 42.0V
Short-Circuit Current (Isc): 13.97A	Optimum Operating Current (Imp): 13.10A
Dimensions: 2278 x 1134 x35mm	Weight: 28.0kg
IP Rate: IP68	Connector Type: MC4

SUNUW SOLAR HYBRID INVERTER&CONTROLLER
Nominal System Voltage: 12V	Rated Charge Current: 40A
Max. PV Input Voltage: 40-100V	Max. PV Input Power: 40V/1500W
Max Output Power: 230V/1500W	Solar Charge Type: MPPT

SUNUW DEEP CYCLE AGM BATTERY 12 VOLT 200AH
Battery Type: AGM	Cycle Use Voltage: 14.4V~14.8V
Nominal Voltage: 12V	Weight: 49 kg
Rated Capacity: 200Ah	Dimensions: 520 x 240 x 241 mm

WARRANTY INFORMATION
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty	Accessories: 1-year material and workmanship warranty

Contact us

Required fields*

first name*

last name*

email* An email address must contain a single @

phone number*

country*

company*

subject*

message*

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thanks for contacting us. We will be in touch with you shortly.

An error occurred. Please try again.

1500W For Tiny House Home Solar Kit	2 Pcs of 550W Monocrystalline Solar Panel
	1 Pc 1500W Off Grid Inverter
	1 Pc 12.0V 200A Deep Cycle AGM Battery
	40 Meters PV Cables
	3 Meters Battery Cables
	1 Set Installations Tools
	4 Pcs MC4 Connectors/ 1500V
	4 Set of Solar Panel Mounting Z Bracket
	3 Pcs Solar Y Branch Connectors
